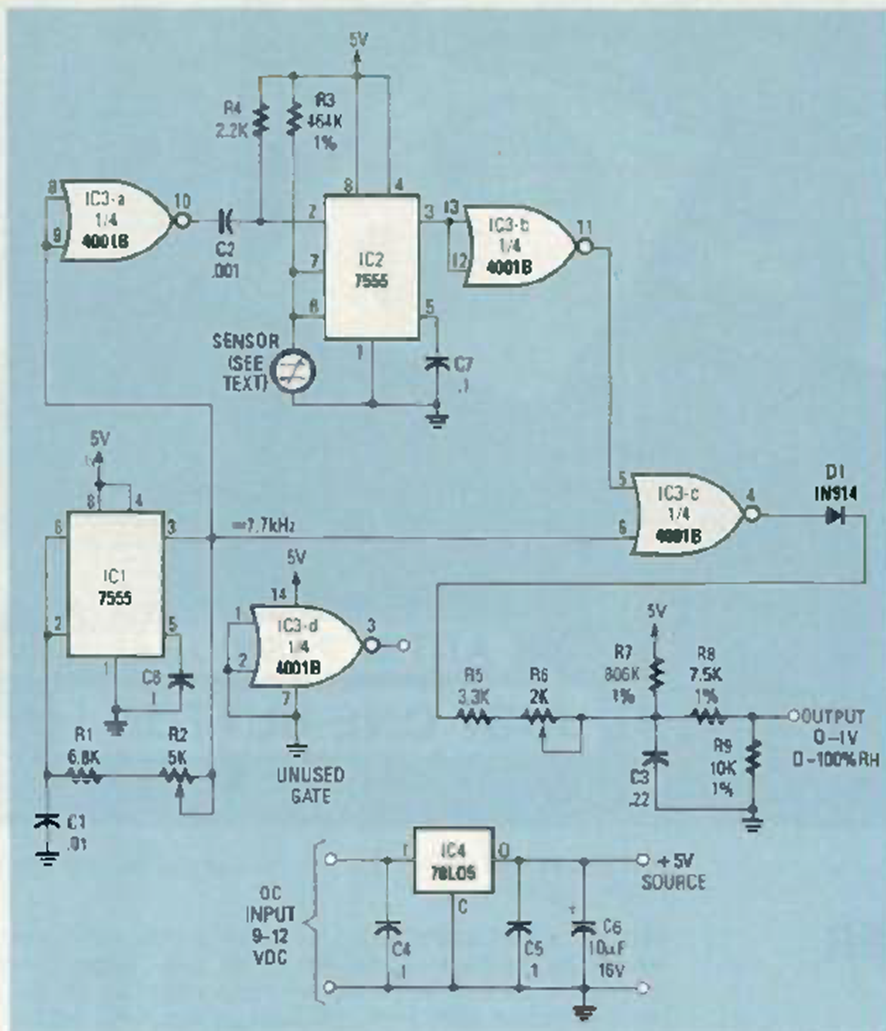

Humidity Monitor (CB24940E)

Using a period sensor, this circuit was found in the February 1986 issue of Radio Electronics magazine. The sensor is a Philips of the period.

| Clique na imagem para ampliar |
