Increasing the output voltage of a 7812 IC (CB24811E)

Details: Written by: Newton C. Braga

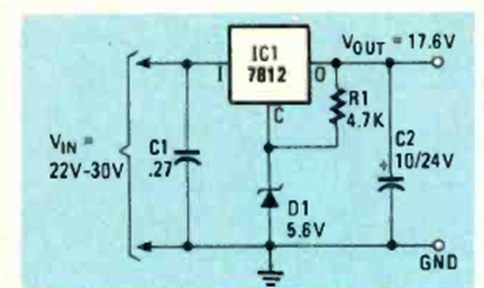

The figure shows how to increase the output voltage of a 7812 IC with a zener diode. Other integrated circuits in the series can be used. The circuit is from Radio Electronics from July 1984.
