Pulse Test (CB24519E)

Details
Written by: Newton C. Braga

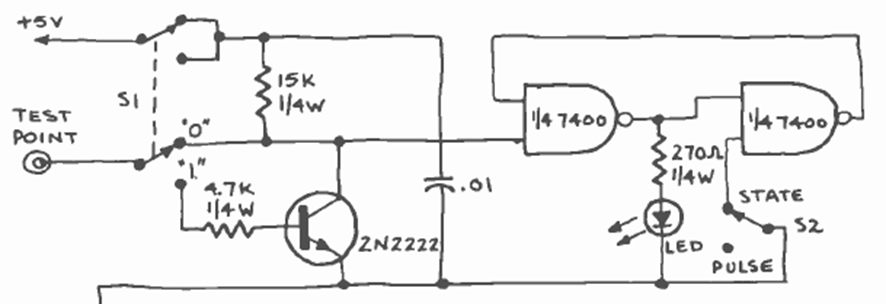

This logic tip latches on pulses. The TTL circuit was suggested by Radio Electronics magazine in August 1977. The power supply must be 5 V.




| Clique na imagem para ampliar |
