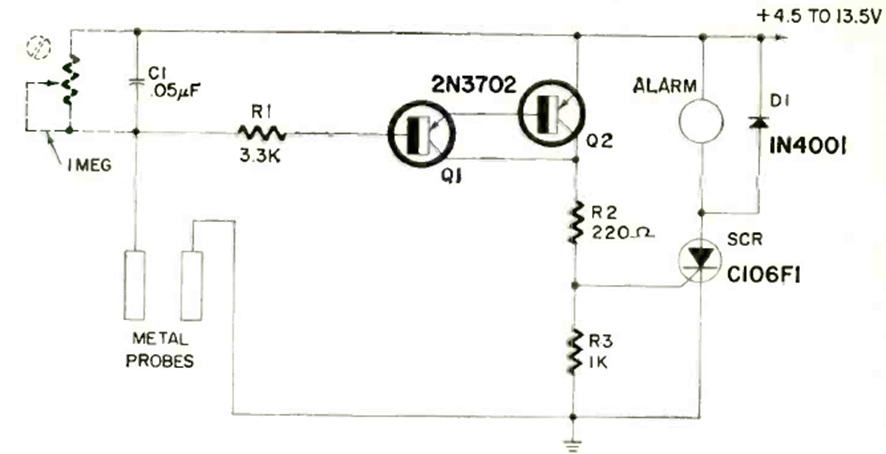

This circuit was found in an article in the August 1971 Radio Electronics magazine. The source must be isolated from the power grid and instead of the alarm, a relay can be used to activate a more powerful system or water pump.
| Clique na imagem para ampliar |
