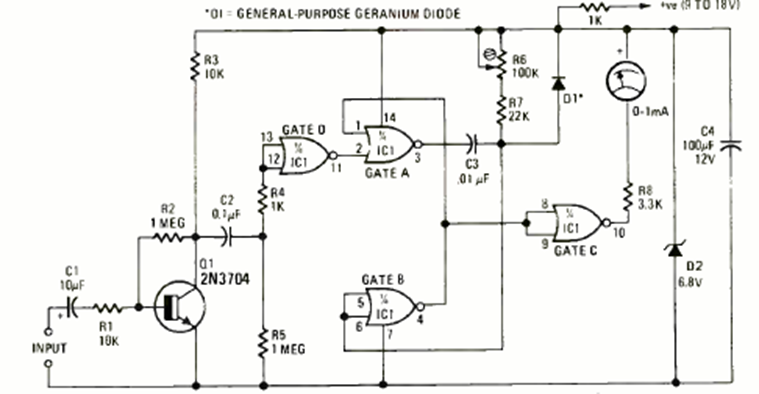

Using a CMOS 4001, this circuit provides frequency readings on an analog instrument. The idea of the original article in April 1976 Radio Electronics magazine is to use it in a tachometer, but it works with sinusoidal signals as well.
