CA3020 Signal Tracer (CB24209E)

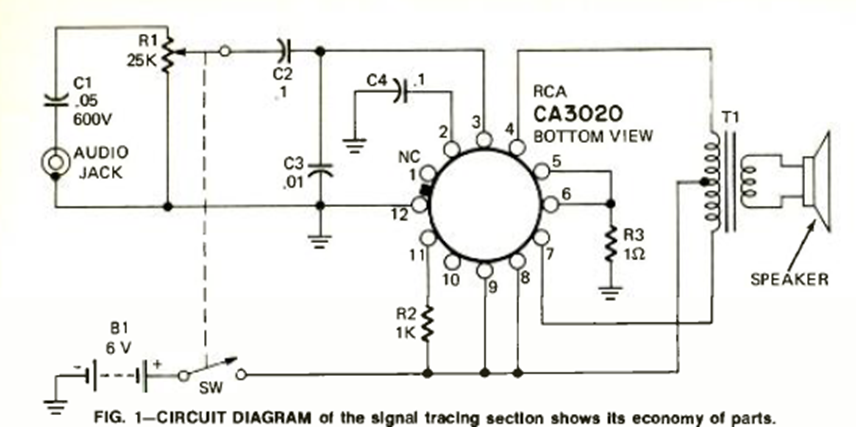

Found in a September 1972 Radio Electronics magazine, this circuit uses RCA's CA3020, a multi-purpose amplifier in a round metal 12-pin package.
