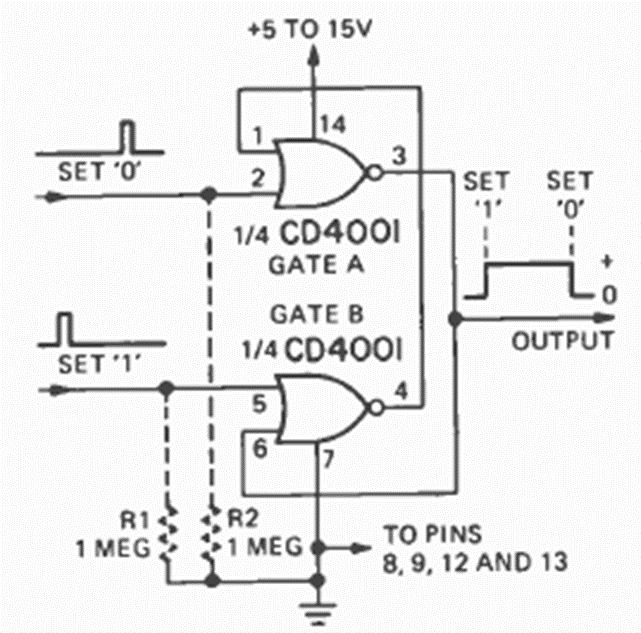

The configuration shown was found in the October 1974 Radio Electronics magazine. The integrated circuit used is the CD4001 and the power supply depends on the application.
| Clique na imagem para ampliar |
Bistable CMOS (CB24326E)
- Details
- Written by: Newton C. Braga
