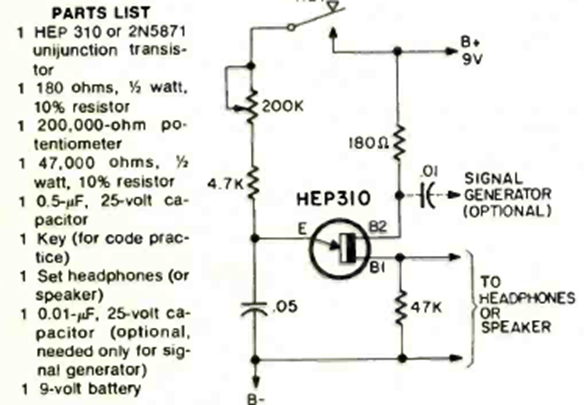

This simple basic circuit that appears in several places on this site from various sources is from the February 1973 Radio Electronics magazine. The maximum frequency is around 100 kHz depending on the transistor.
Unijunction Audio Generator (CB24247E)
- Details
- Written by: Newton C. Braga
