Pulse Narrower (CB24909E)

Details
Written by: Newton C. Braga

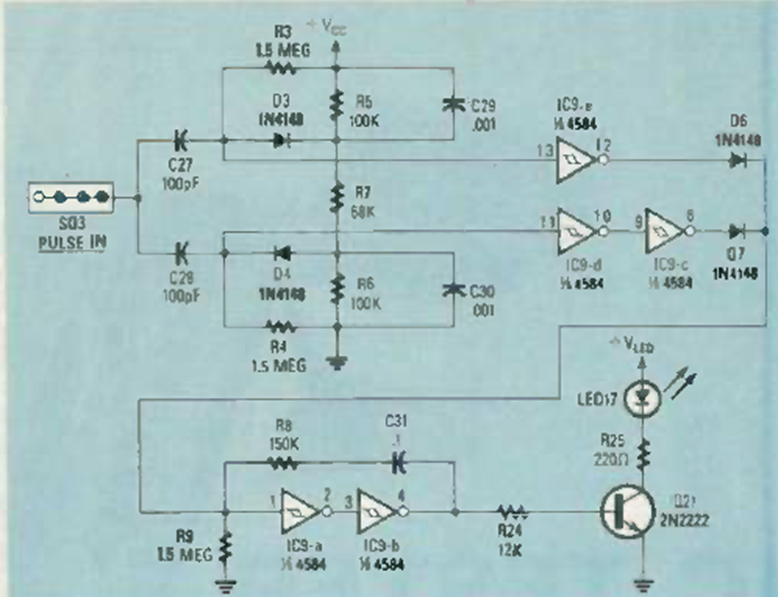

We found this circuit in the September 1985 issue of Radio Electronics magazine. It uses CMOS integrated circuits and is part of a larger integrated circuit test project.
