Digital Multimeter (CB24734E)

Details
Written by: Newton C. Braga

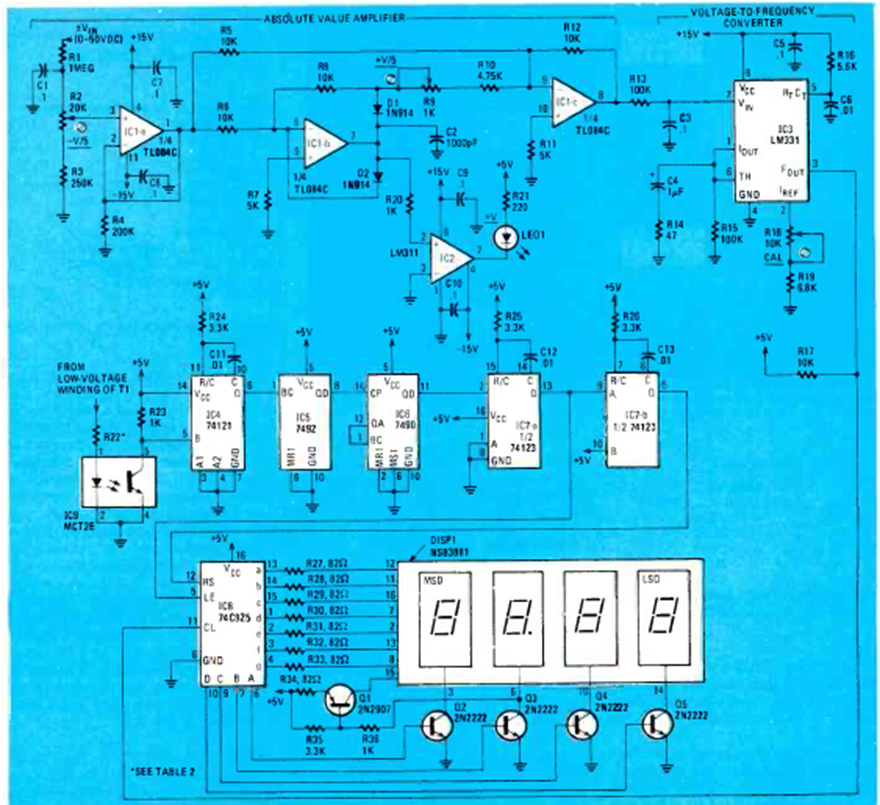

This circuit was found in the February 1983 issue of Radio Electronics magazine. It is a 4-digit circuit with dedicated integrated circuits, with no power supply indicated.
