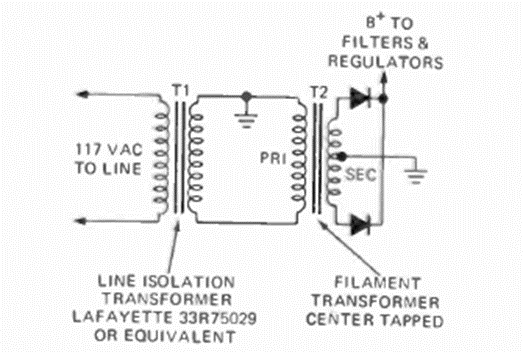

If you have old tube or transistor amplifiers that hum (60 Hz noise) the circuit shown may be the solution. It uses a transformer with the same power as the amplifier transformer and a 1 to 1 turns ratio. An isolation transformer, which must have one of its lines grounded. It is from a Radio Electronics from August 1973.
