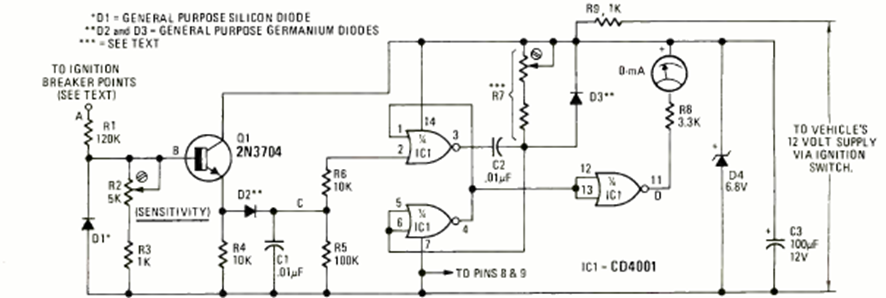

The speed indication of this circuit is made on an analog instrument. The circuit is used to count pulses (rpm) and was found in April 1976 Radio Electronics magazine.
| Clique na imagem para ampliar |
Analog Tachometer (CB24412E)
- Details
- Written by: Newton C. Braga
