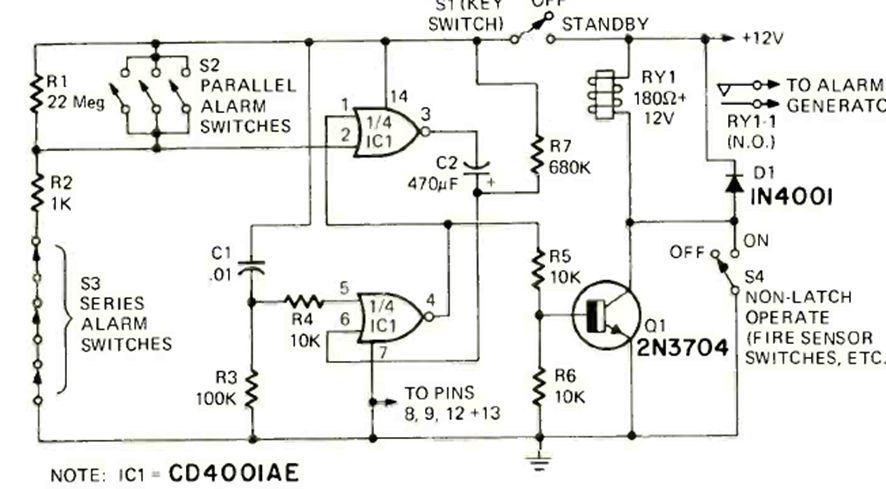

This alarm with automatic shutoff was found in the April 1975 Radio Electronics magazine. The activation time is given by C1 and R3. The alarm uses series and parallel sensors.
| Clique na imagem para ampliar |
Alarm with Shutdown (CB24375E)
- Details
- Written by: Newton C. Braga
