Microammeter CA3018 (CB24092E)

Details
Written by: Newton C. Braga

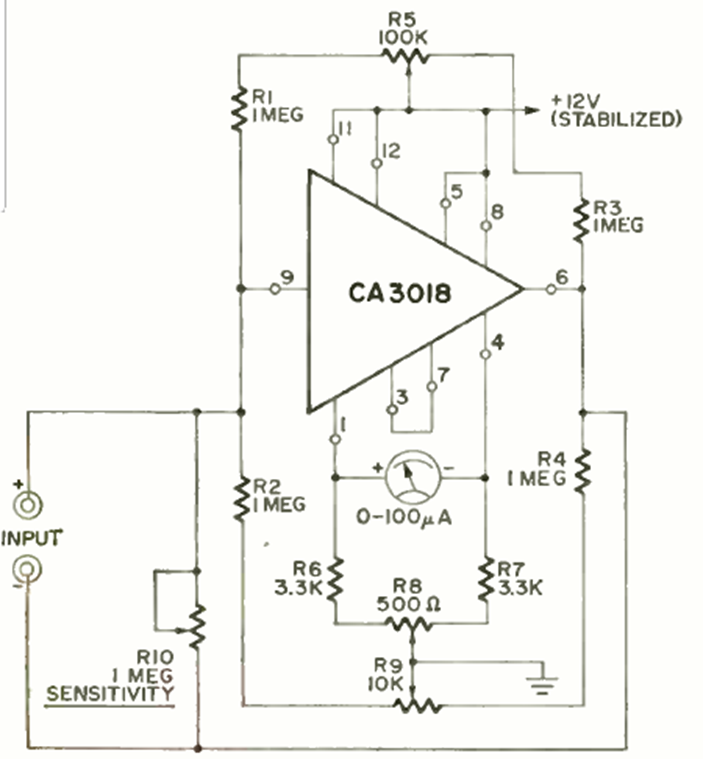

Using an RCA integrated circuit, this instrumentation amplifier was found in a November 1970 Radio Electronics magazine. The instrument has a full scale of 100 uA.




| Clique na imagem para ampliar |
