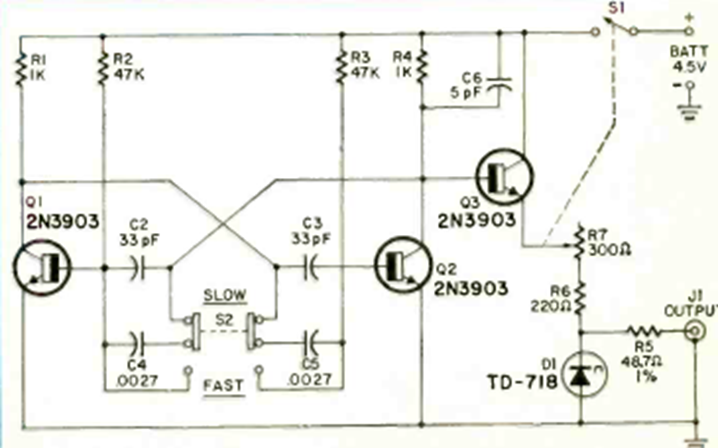

This small signal injector generator was found in the February 1971 issue of Radio Electronics magazine. The circuit uses general-purpose transistors of the time and can be implemented with current equivalents.
| Clique na imagem para ampliar |
Signal Generator (CB24108E)
- Details
- Written by: Newton C. Braga
