Infrared Control Receiver (CB24830E)

Details
Written by: Newton C. Braga

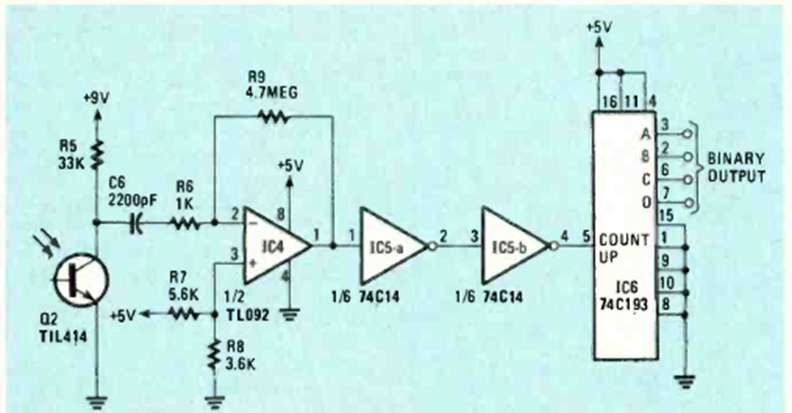

This is a circuit for receiving signals from the previous transmitter. The circuit uses a common phototransistor. It was found in the August 1984 issue of Radio Electronics magazine.




| Clique na imagem para ampliar |
