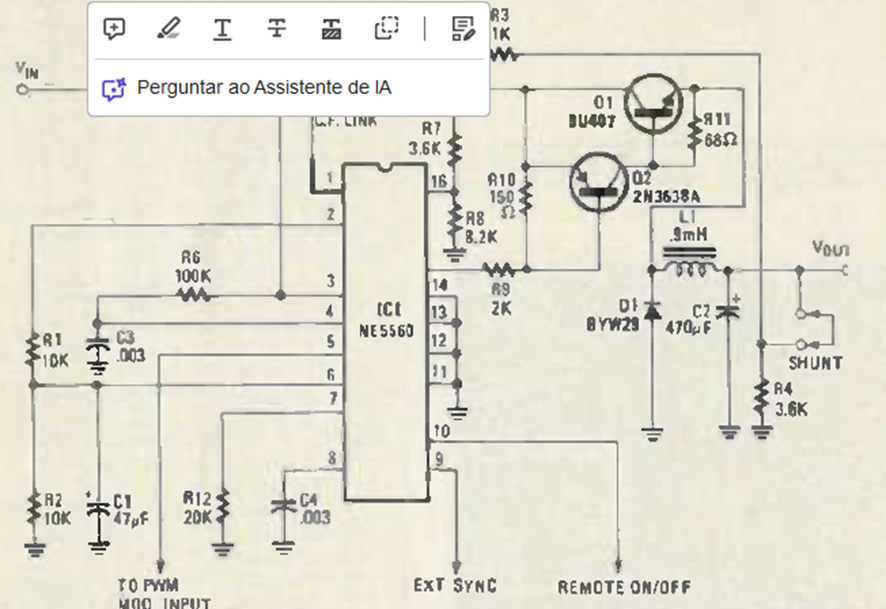

This switching buck regulator with the NE5560 was found in the February 1980 issue of Radio Electronics magazine. The power transistor must be provided with a heat sink.
| Clique na imagem para ampliar |
Switching Buck Regulator (CB24612E)
