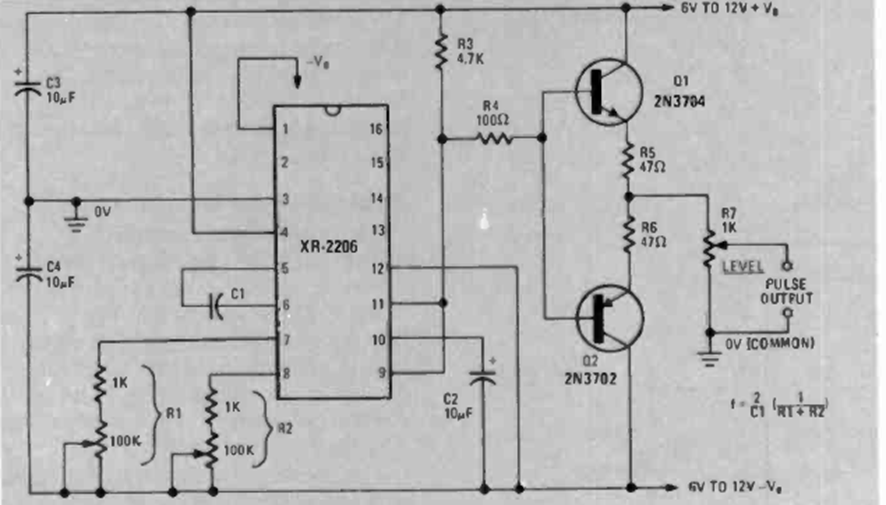

We found this circuit in the Radio Electronics magazine of May 1977. The circuit has the frequency given by the components according to the formula next to the diagram.
| Clique na imagem para ampliar |
Pulse Generator XR2206 (CB24509E)
- Details
- Written by: Newton C. Braga
