This multivibrator with the 4001 was found in the November 1974 Radio Electronics magazine. The diode can be any general-purpose silicon diode and the timing is given by R1, R2, C1 and C2.
| Clique na imagem para ampliar |

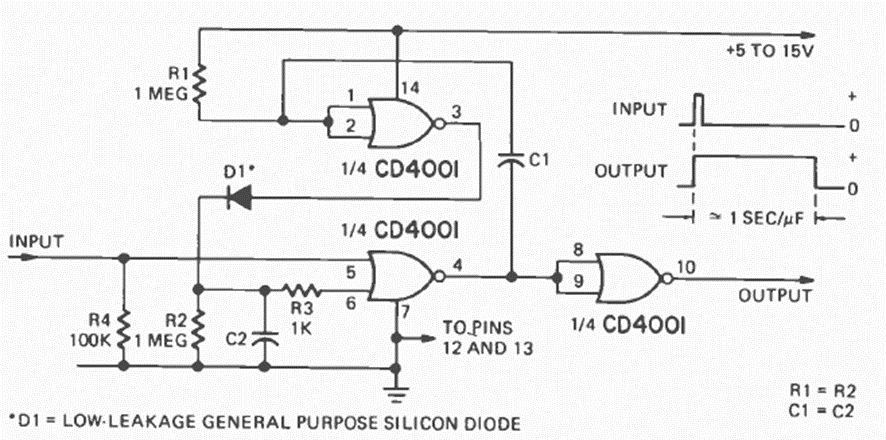

Monostable with positive output (CB24338E)
