Wideband Amplifier (CB24736E)

Details
Written by: Newton C. Braga

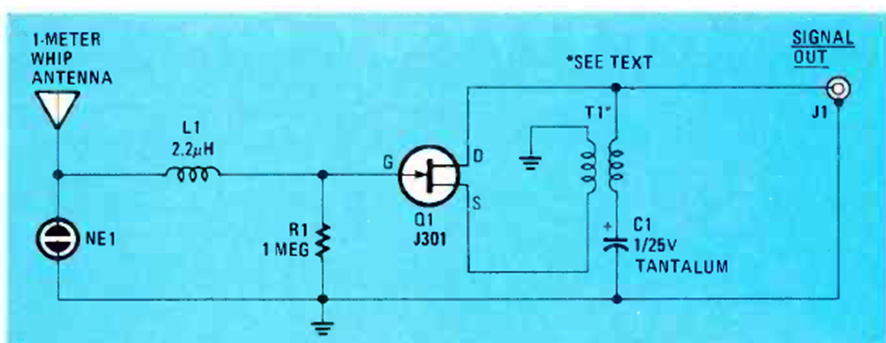

Found in the February 1983 Radio Electronics magazine, this circuit uses a FET and has good gain at the frequencies determined by the components. The FET is any general-purpose FET.




| Clique na imagem para ampliar |
