10 A Regulator (CB24573E)

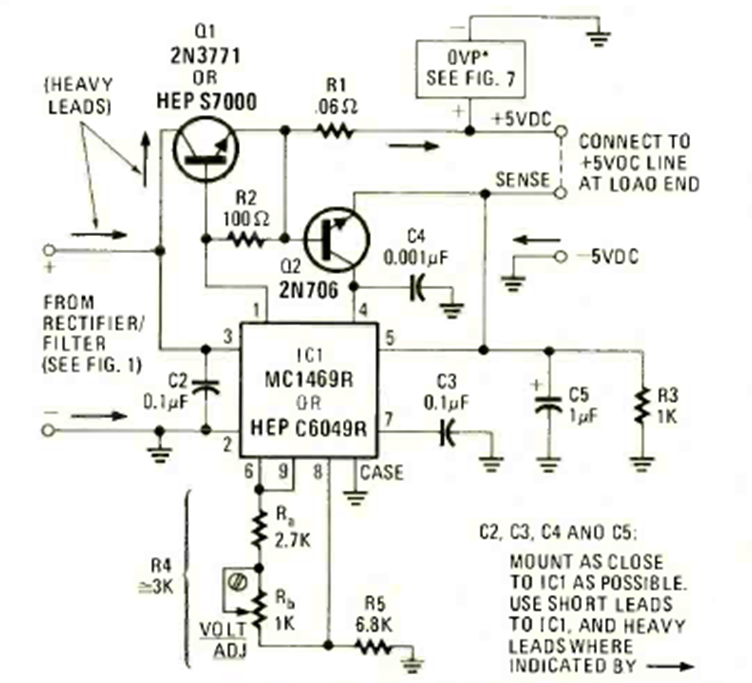

This 5 V circuit was found in December 1978 Radio Electronics magazine. The power transistor must be mounted on a good heat sink.

| Clique na imagem para ampliar |

Oscillator using a Comparator (CB13145E)
Frequencies up to just over 100 kHz can be obtained with an oscillator based on one of the four...
Metal Detector (CB22460E)
This circuit, found in a Popular Electronics from 1992, is based on an oscillator and a crystal...
Open Collector TTL Gate (CB24884E)
This is a discrete equivalent version of an open collector TTL gate. What we have is an inverter...
