Monophonic organ 8038 (CB24536E)

Details
Written by: Newton C. Braga

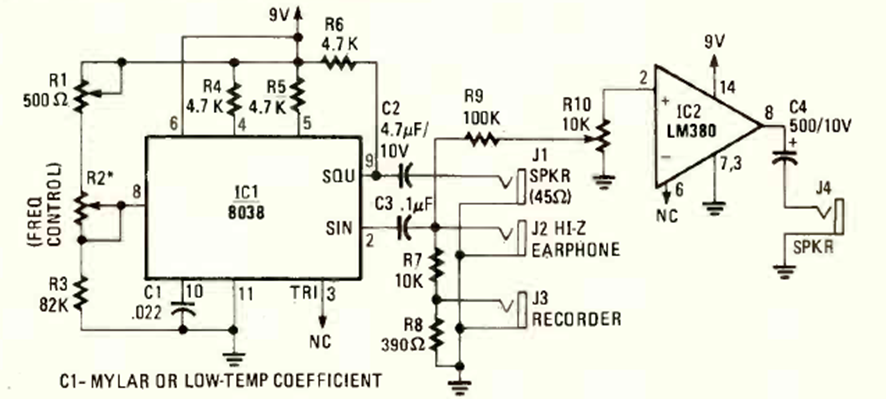

The frequency of each note depends on R2, which must be replaced by a keyboard. The circuit is from Radio Electronics from April 1980. The power supply is 9 V for the amplifier used.
