5-stage digital sine wave generator (CB24477E)

Details
Written by: Newton C. Braga

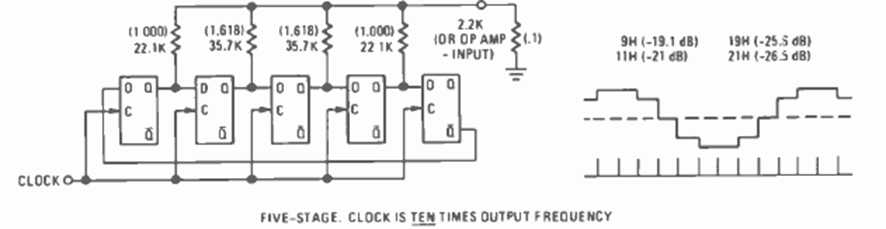

We found this circuit in a Radio Electronics magazine from November 1976. The clock frequency is divided by 10 and the maximum value depends on the integrated circuits used.
