Binary Demonstrator (CB24244E)
- Details
- Written by: Newton C. Braga

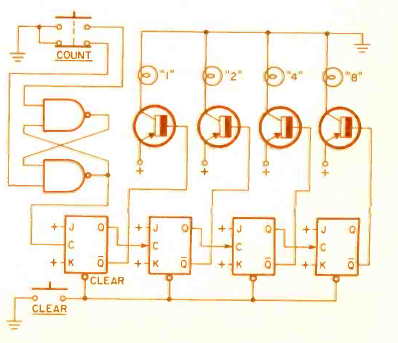

This TTL circuit was found in the February 1973 issue of Radio Electronics magazine. The power supply is 5 V. The counter is 4 bits. The transistors are general purpose types.
