Sophisticated Monostable 4001 (CB24337E)

Details
Written by: Newton C. Braga

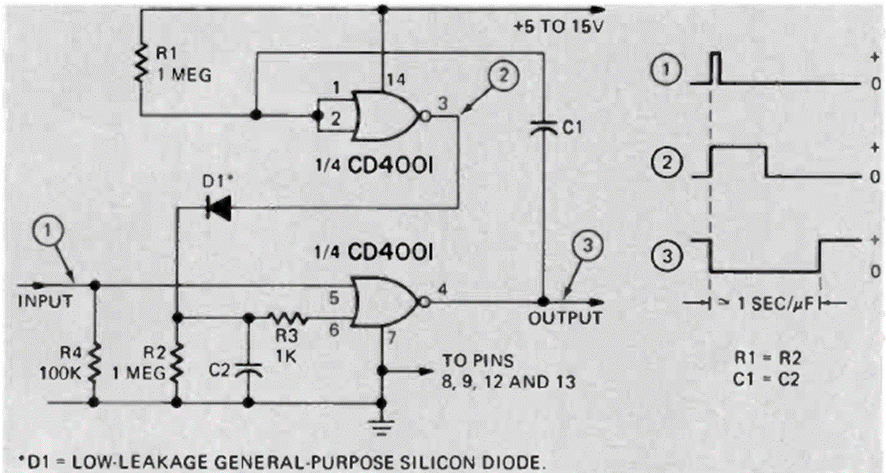

This circuit was found in the November 1974 Radio Electronics magazine. The voltage depends on the supply and the timings of R1 and R2 as well as C1 and C2.
