Contrast Meter (CB24875E)

Details
Written by: Newton C. Braga

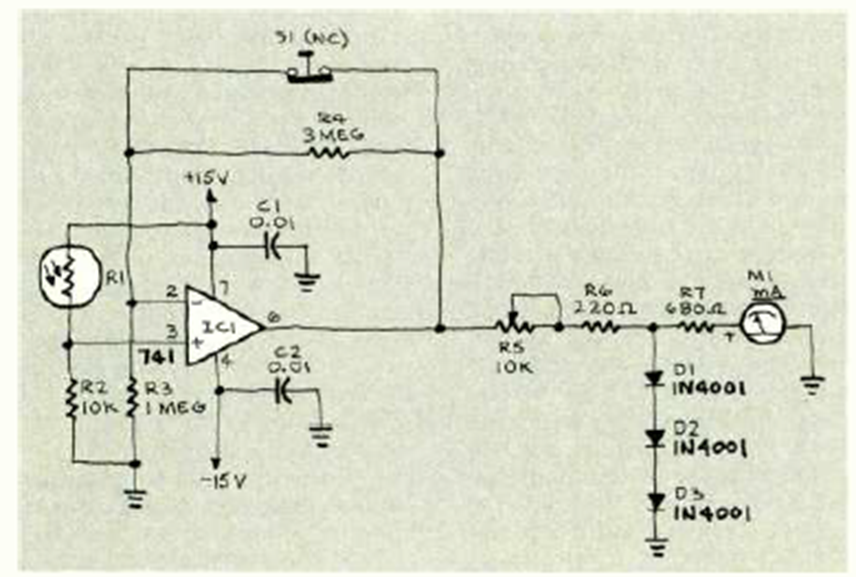

Using an LDR as a sensor, this circuit is from the Radio Electronics magazine of December 1984. The operational amplifier is the 741 and the source must be symmetrical.




| Clique na imagem para ampliar |
