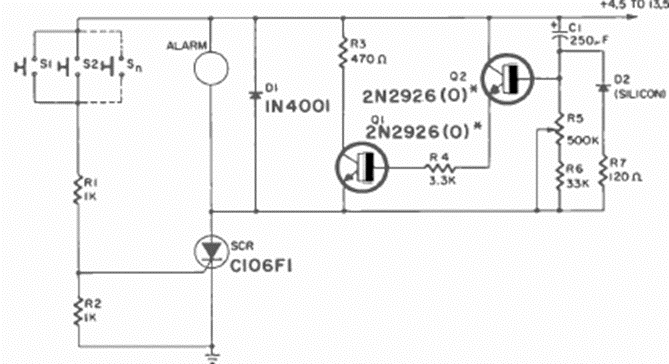

Found in the July 1970 Radio Electronics magazine, this circuit has an adjustable activation time that depends on capacitor C1. The SCR may be a 106 series equivalent.
| Clique na imagem para ampliar |
Timed Alarm (CB24140E)
- Details
- Written by: Newton C. Braga
