Diode Array (CB26020E)
- Details
- Written by: Newton C. Braga

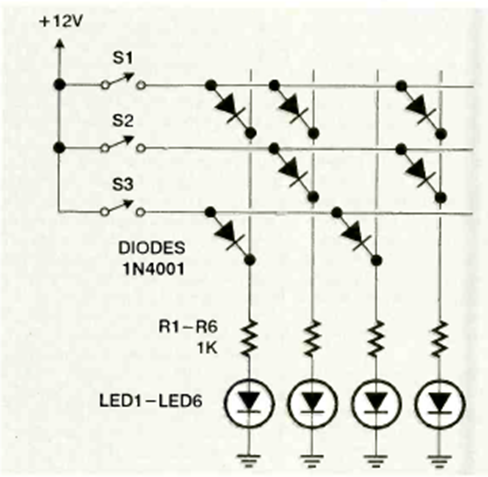

The combination of diodes determines which of the LEDs will light when one of the switches is activated. The circuit is from the August 1997 Electronics Now magazine.
