5 to 15 V x 50 mA Converter (CB26058E)

Details
Written by: Newton C. Braga

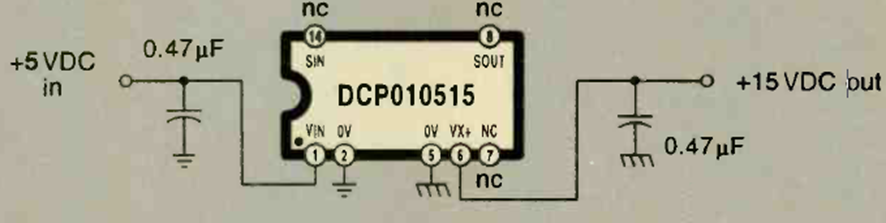

This circuit is based on the DCP010515 integrated circuit found in the August 1998 issue of Electronics Now magazine. This integrated circuit is not very common these days.




| Clique na imagem para ampliar |
