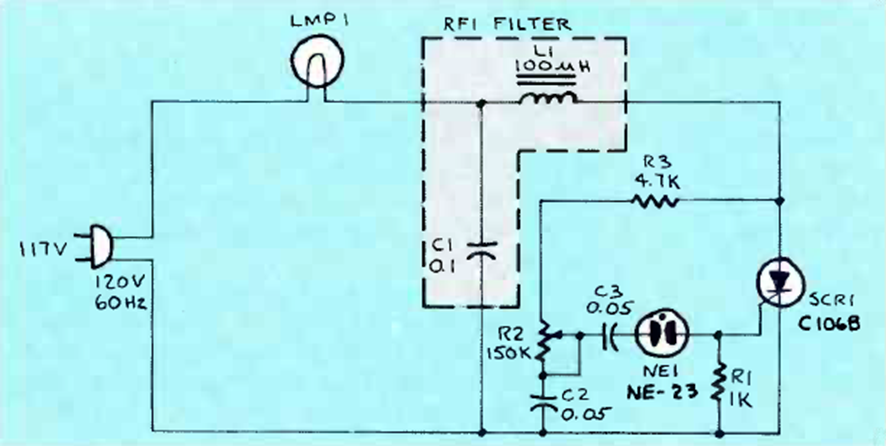

The figure shows how to implement a filter against interference caused by the switching of a triac. The circuit is from a Radio Electronics from April 1987.
| Clique na imagem para ampliar |
Dimmer with filter (CB25027E)
- Details
- Written by: Newton C. Braga
