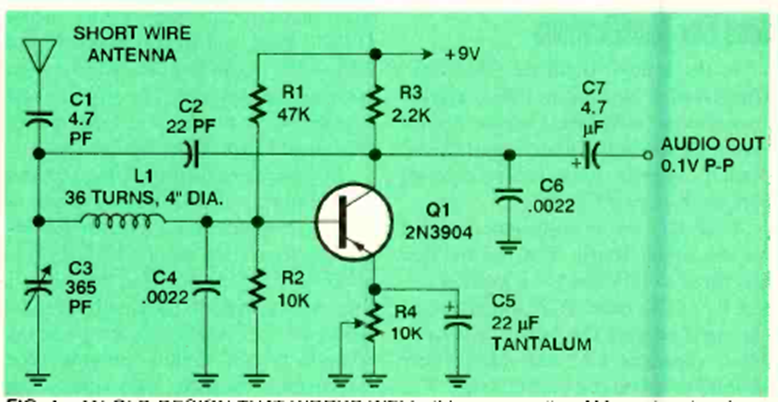

This simple circuit has good gain and can be implemented with any general-purpose transistor. The circuit is from Electronics Now, June 1997. The coil determines the frequency range.
| Clique na imagem para ampliar |
Regenerative AM Receiver (CB26019E)
- Details
- Written by: Newton C. Braga
