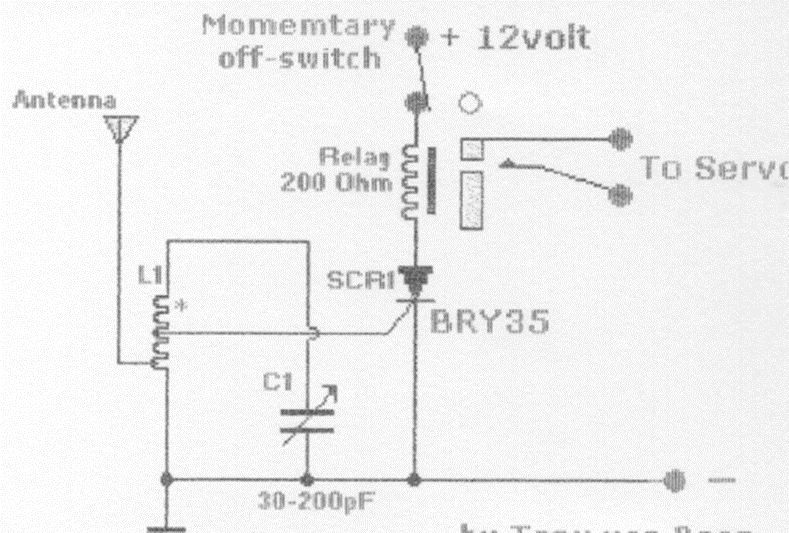

This circuit uses an SCR as an active component, working only at short distances. The circuit was found in documentation from the 90s. The coil has 3 + 5 + 5 turns of 28 wire in a 0.5 cm shape for operation in the 27 MHz band.
