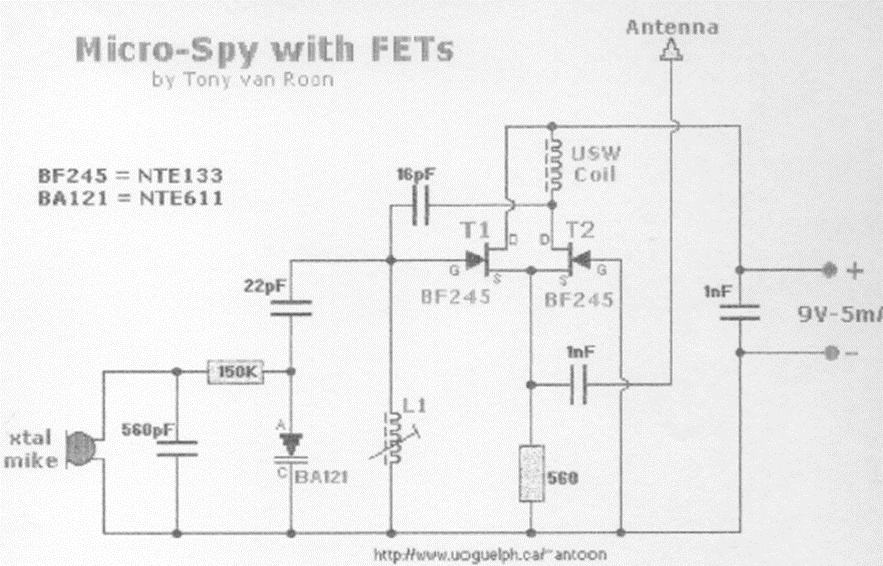

This circuit is from a documentation from the 90s. The transistor can be any general-purpose FET like the BF245, the one indicated, and the coil consists of 4 turns of 28 wire in a 0.5 cm shape without a core for the FM band.
| Clique na imagem para ampliar |
