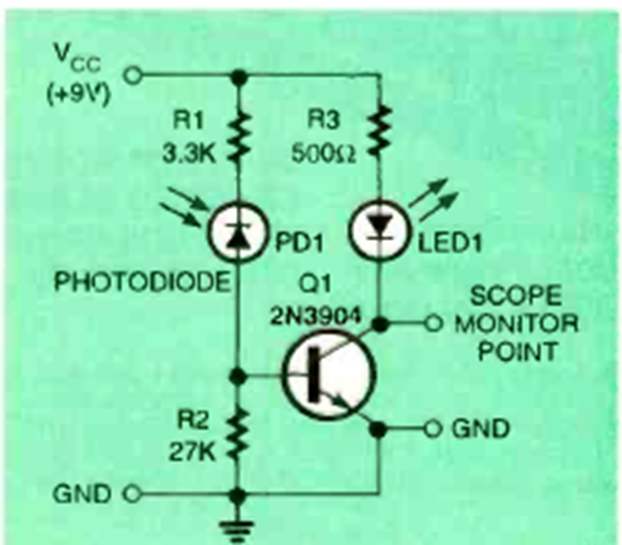

Indicated for testing remote controls, this circuit was obtained from the June 1997 issue of Electronics Now magazine. The LED can be any color and the sensor is a common photodiode.
Remote Control Detector (CB26017E)
- Details
- Written by: Newton C. Braga
