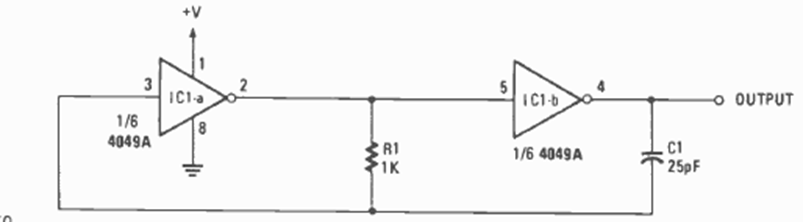

This is one of many configurations of this type that can be found on our website. The circuit uses two inverters and has the frequency determined by capacitor C1.
| Clique na imagem para ampliar |
CMOS Inverter Oscillator (CB25024E)
- Details
- Written by: Newton C. Braga
