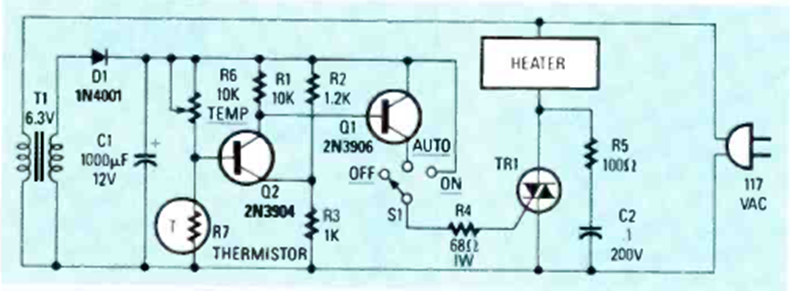

This circuit was obtained from Radio Electronics magazine, October 1987. The circuit uses a triac to control the heating element current. The transistors are general purpose.
| Clique na imagem para ampliar |
Thermistor Control (CB25082E)
- Details
- Written by: Newton C. Braga
