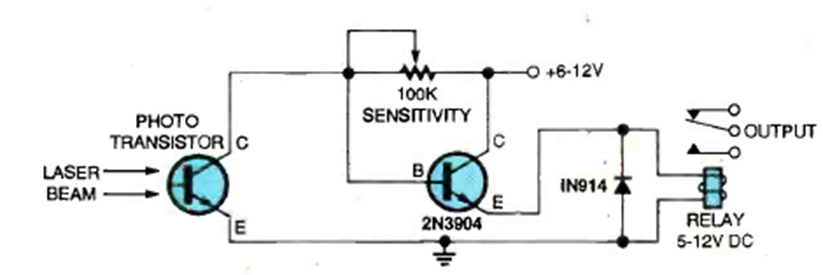

This circuit triggers a relay when a light beam that hits the phototransistor is cut off. The circuit is from Electronics Now and the supply voltage depends on the relay voltage.
| Clique na imagem para ampliar |
Laser Alarm (CB25976E)
- Details
- Written by: Newton C. Braga
