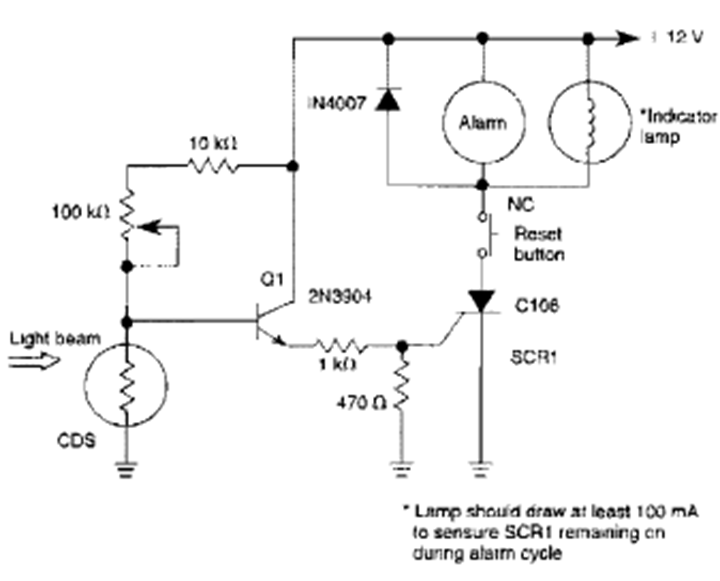

This circuit triggers a buzzer or other warning device when the light falling on the sensor is cut off. We found it in the Encyclopedia of Electronic Circuits Volume 5 of 1995.
| Clique na imagem para ampliar |
Intrusion Alarm (CB26238E)
- Details
- Written by: Newton C. Braga
