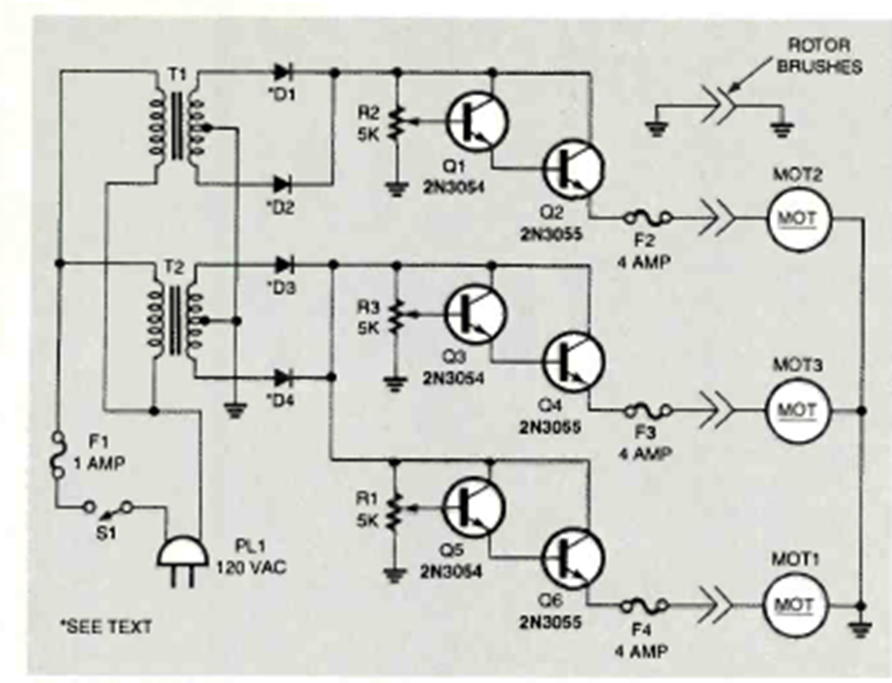

This circuit for controlling a model of an elevator via wire was found in the December 1997 issue of Electronics Now magazine. DC motors must be rated at the voltage of the transformers.
| Clique na imagem para ampliar |
Triple DC Motor Control (CB26035E)
- Details
- Written by: Newton C. Braga
