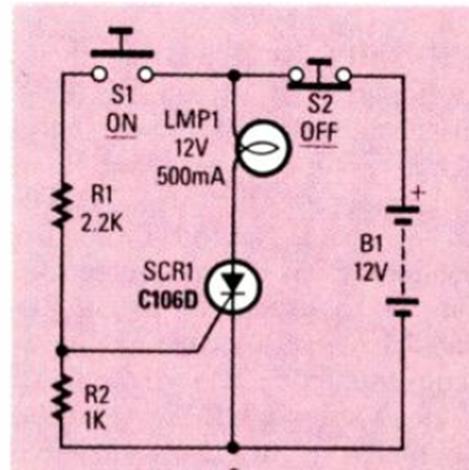

Simple switch with SCR (CB25059E)
- Details
- Written by: Newton C. Braga
This circuit is used to switch direct current loads such as a lamp, for example. Remember that there is a voltage drop of around 2 V across the SCR in conduction.
