Fuel Gauge (CB26016E)

Details
Written by: Newton C. Braga

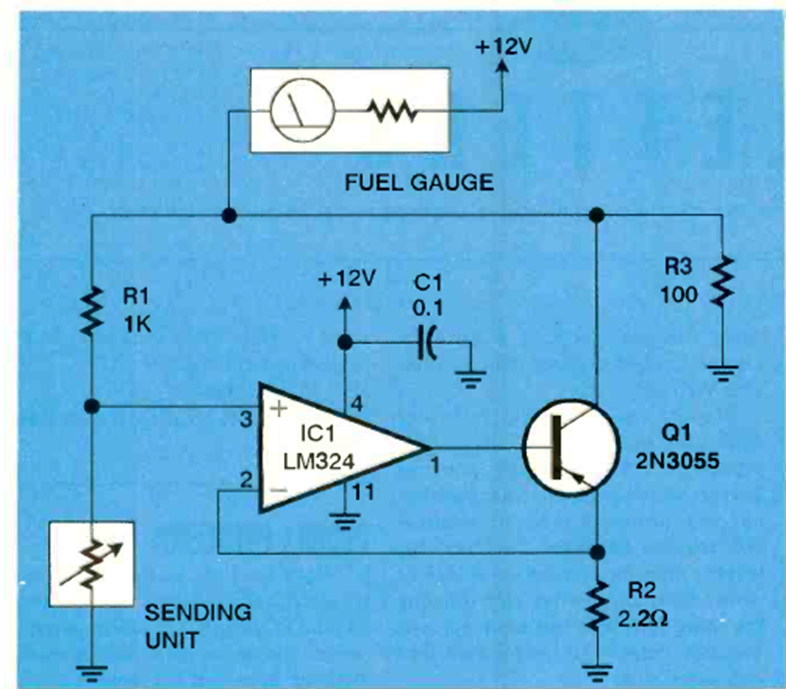

This automotive circuit was found in the June 1997 issue of Electronis now magazine. The circuit uses a common operational amplifier powered by 12 V.
