Triac Switch (CB26128E)

Details
Written by: Newton C. Braga

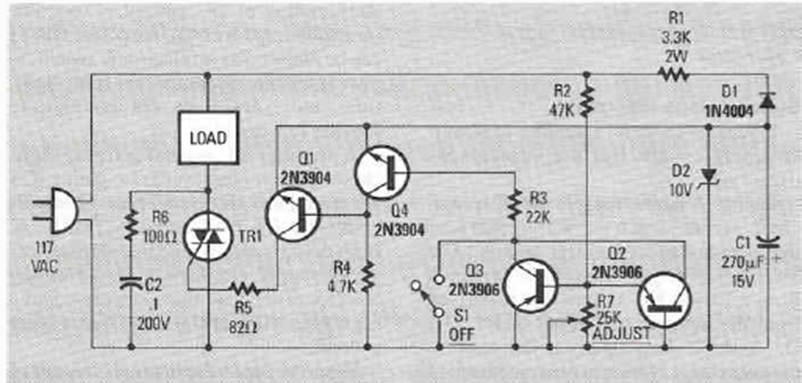

This circuit turns off when switch S1 is opened. The circuit is from the 1989 Radio Electronics Experimenter edition; The triac must be controlled according to the load.
