Alarm Delay (CB26236E)

Details
Written by: Newton C. Braga

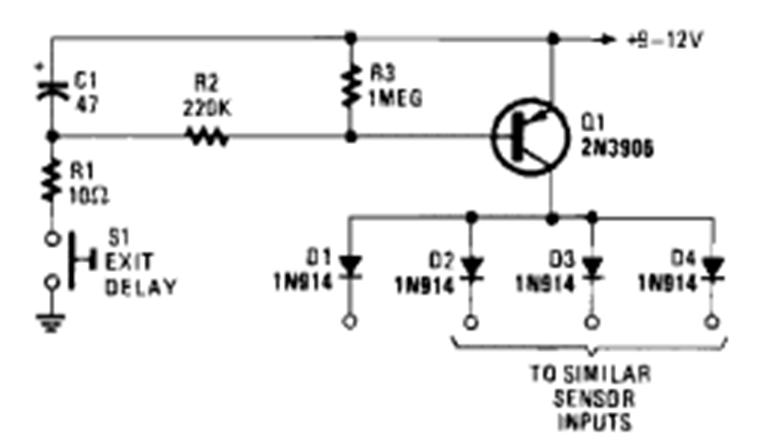

This circuit provides a delay for the activation of an alarm, giving the owner time to leave the premises. The circuit is from the 1995 Encyclopedia of Electronic Circuits Volume 5.
