Differential temperature alarm (CB26159E)

Details
Written by: Newton C. Braga

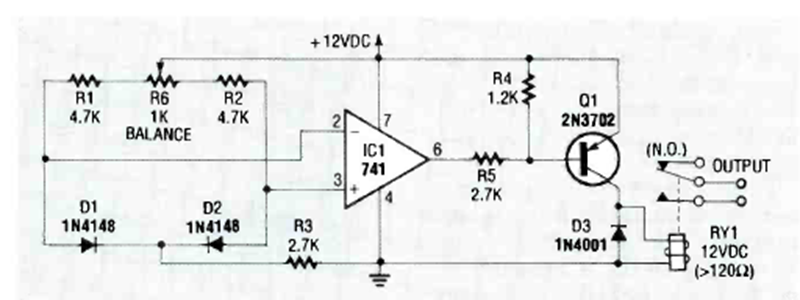

The sensors in this circuit that triggers when the temperature goes out of a certain range are common diodes. The circuit is from the 1991 Reista Electronics Experimenter's Handbook.




| Clique na imagem para ampliar |
