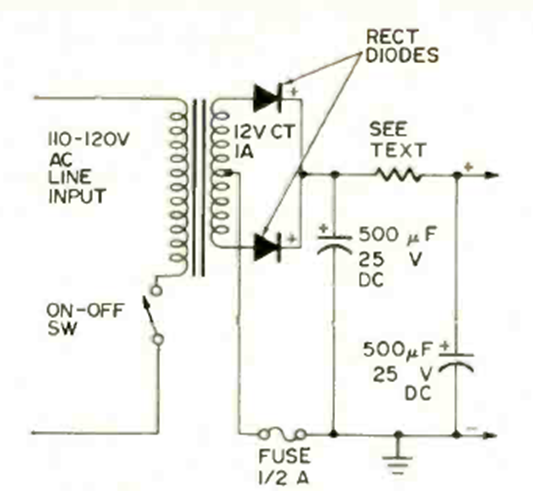

This simple unregulated power supply was taken from a December 1970 Radio Electronics magazine. The unregulated resistor should be a 10 ohm to 100-ohm wire according to the load.
Simple Full-Wave Power Supply (CIR24097E)
- Details
- Written by: Newton C. Braga
