Buzzer circuit (CB25102E)

Details
Written by: Newton C. Braga

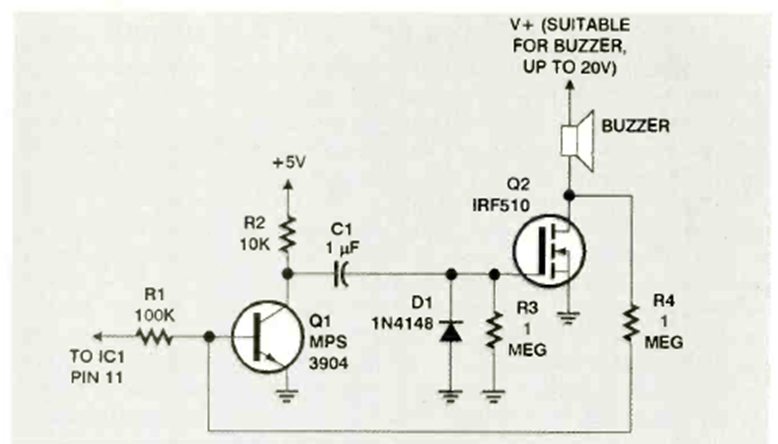

Indicated for activation by microcontrollers, this circuit was found in the Radio Electronics magazine of December 1987. The MOSFET can be of any type according to the buzzer.




| Clique na imagem para ampliar |
