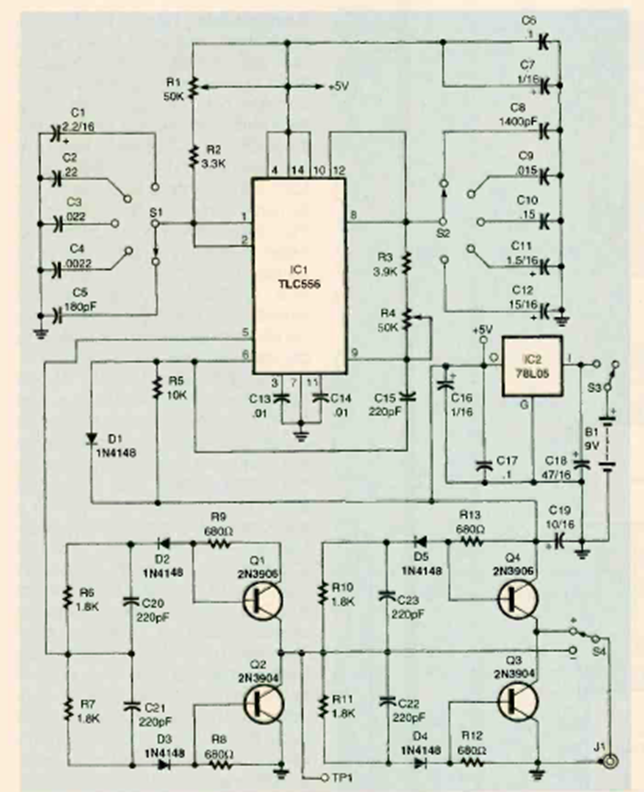

TLC556 Pulse Generator (CB26052E)

Using a dual 555 CMOS this very useful circuit on the bench was found in the July 1998 Electronics Now magazine. The circuit is battery powered.
