Alternating Triac Control C (CB25078E)

Details
Written by: Newton C. Braga

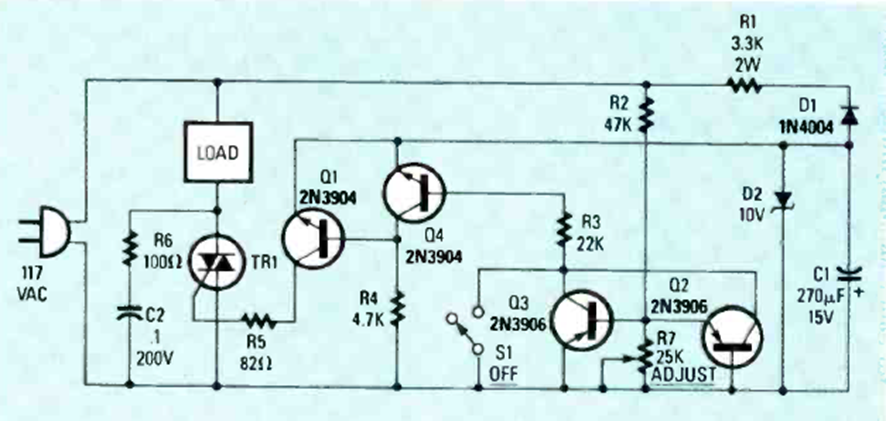

In this circuit the triac conducts when switch S1 is opened. We found it in the October 1987 Radio Electronics magazine. The triac is controlled according to the load.
