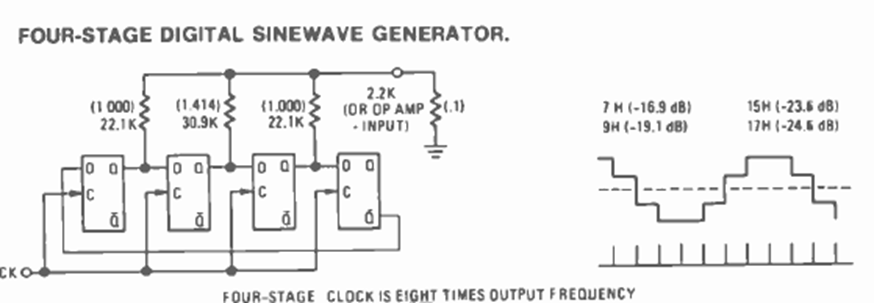

The figure shows how to generate a sinusoidal signal using 4 flip-flops. The circuit is from a Radio Electronics magazine from November 1976. The clock frequency is divided by 8.
| Clique na imagem para ampliar |
5-Step Sine Wave Generator (CB24476E)
