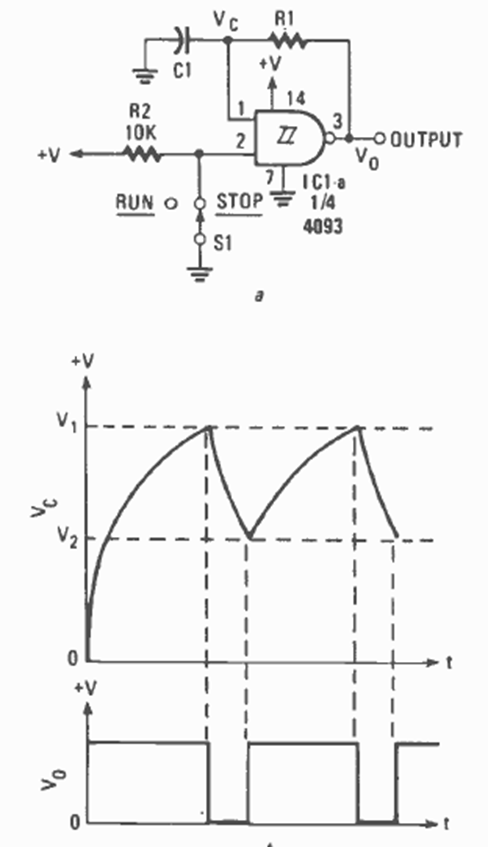

This is one of many possible versions for an oscillator with the 4093. We found it in January 1987, Radio Electronics. The capacitor C1 determines the frequency together with R1.
4093 Controlled Oscillator (CB25019E)
- Details
- Written by: Newton C. Braga
